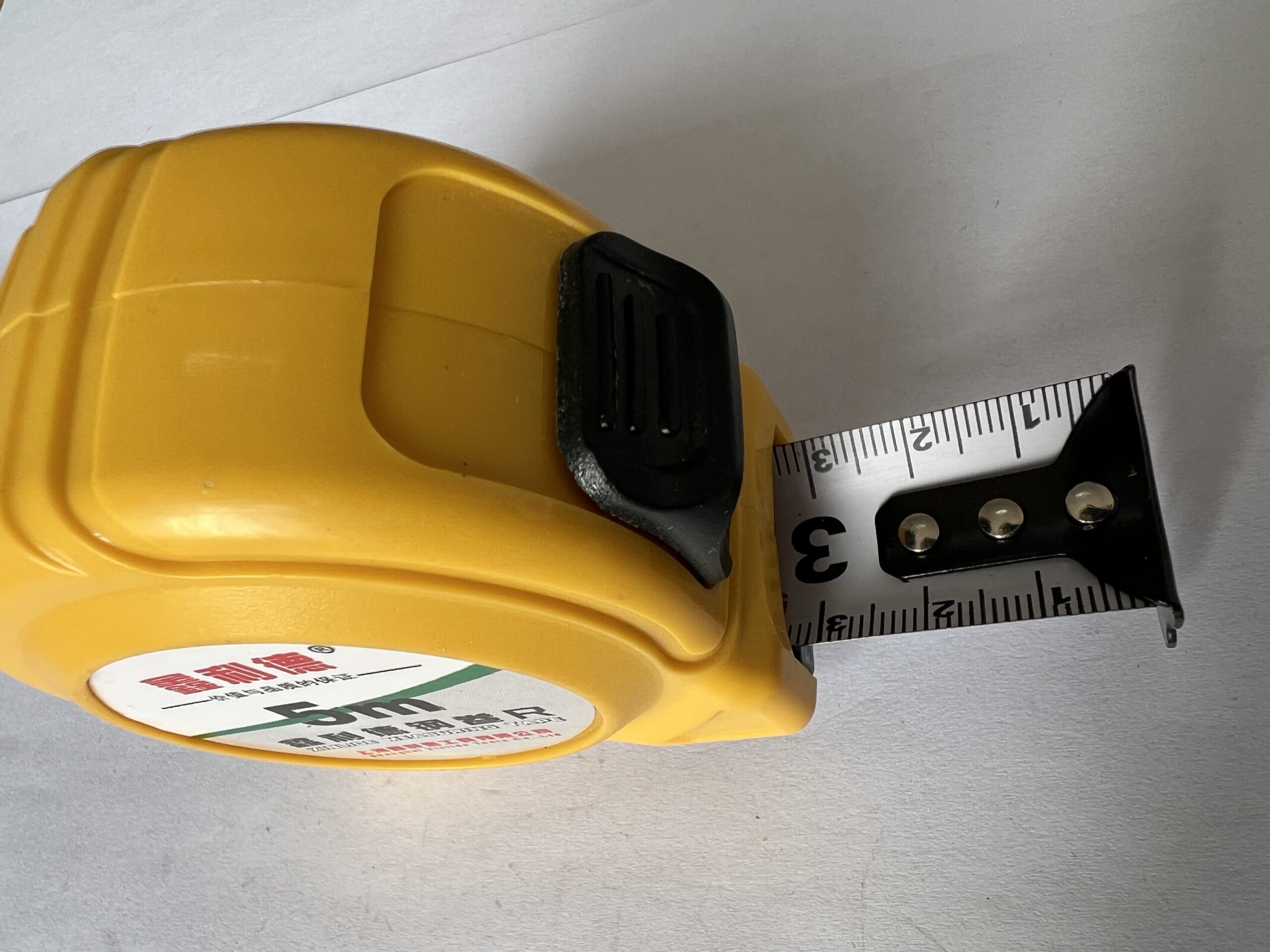

Measuring Steel Tape For Yellow Plastic Abs Shell
View the contents of our product details
The double gate design is convenient to control the contraction speed of the ruler belt
Classic design, brand-new ABS material, tape can be customized
Water based high wear-resistant matte essential oil
Electrophoretic black plating of ruler hook
High wear resistance
High precision
Fall resistance
The double gate design is convenient to control the contraction speed of the ruler belt
Classic design, brand-new ABS material, and tape can be customized
Water-based high wear-resistant matte essential oil
Electrophoretic black plating of ruler hook
High wear resistance
High precision
Fall resistance
A ruler is often used to measure some objects at ordinary times. A pressure-resistant steel frame tape measure from a China factory is easy to use. It is easy to measure and has high measurement accuracy. Pay attention to the correct method when using a tape measure. Generally, when using a tape measure, first turn on the brake switch, then slowly pull out the tape, hook the edge of the object with the hook in front of the tape, pull the tape to the position to be measured, and use the direct reading method or
After the indirect reading method is finished, the ruler can be taken back. There are also some matters needing attention in the process of using the coupon ruler. Let’s learn about the use method and precautions of the tape
A pressure-resistant steel frame tape measure from the manufacturer is a commonly used measuring tool in the family, which can be used to measure the length of various objects in life. Many friends have used a tape measure, but they may not know the correct method of using the tape. How to use the tape?
1. There is a switch on the side of most measuring tapes. To use a measuring tape, you must first turn on the switch before you can pull the ruler out; In addition to the switch, some better tapes also have other buttons to help keep the ruler stable during measurement.
2. After the tape is opened, the object can be measured. During measurement, hook the edge of the object with the bending hook in front of the tape, and then stretch the ruler surface close to the surface of the measured object to the measurement position.
3. Reading: there are two methods for reading the tape. One is the direct reading method. When measuring, the zero scales of the steel tape is aligned with the starting point of the measurement, and the flexible tension is applied to directly read the scale on the tape corresponding to the end point of the measurement. The other is the indirect reading method. In some parts where the steel tape cannot be used directly, the steel ruler or square can be used to align the zero scale with the measuring point, and the ruler body is consistent with the measuring direction; Use a steel tape to measure the distance to a full scale on the steel ruler or square, and the remaining length shall be measured by reading method.
4. After the measurement is completed, loosen the tape and let it recover automatically. Note that the edge of the tape is sharp. Be careful not to cut your hand.
Origin | shangqiu | Brand | songchuang |
Specifications | 5m | Customized processing | Yes |
Type | steel tape | Measuring range | 0-5000 (mm) |
Material | stainless steel | Accuracy | 1mm |
Number of cases | 50 | Size | 1.4 * 10mm |
Net weight | 0.3KG | Scope of application | construction site and daily life |
Tape width | 10mm | Tape length | 5m |
System | metric | Series | Measuring ruler |
As a measuring tool, the tape should also pay attention to some matters when using it. The precautions for using the tape include:
1. The tape of tape is usually plated with chromium, nickel, or other coatings, so it should be kept clean. During measurement, it should not be rubbed with the measured surface to prevent scratches.
2. When using a pressure-resistant steel frame tape measure, the tape should not be pulled out too hard but should be pulled out slowly. After use, it should also be let back slowly to avoid excessive elastic contraction force, which will cause the tape to scratch the hand.
3. For dry brake tape, press the brake button first, and then gently pull out the tape; After measuring, press the brake button, and the tape will be automatically rolled up. The tape can only be rolled up, not folded.
4. Do not put the tape measure in a damp place with acid gas to prevent corrosion.
5. When the tape is used at night or outside without light, it can be coated with luminous substances on the linear surface of the tape, which can emit light in the dark, so that people can see the forbidden lines and numbers. However, pay attention to protecting the coating during use.
6. After use, the tape should be placed in a dry and protected place to avoid collision and wiping.
